CUSTOM MOTION / 司爱佳 SANJ
Curved rails, matched carriages and complete track systems. Configure the path, payload and station interfaces around your automation equipment.
FROM A COMPONENT TO A COMPLETE PATH
Explore the guide geometry first. Then define the fixture, drive, station process and installation interfaces as one project.
Catalogue imageRING & TRACK SYSTEMS

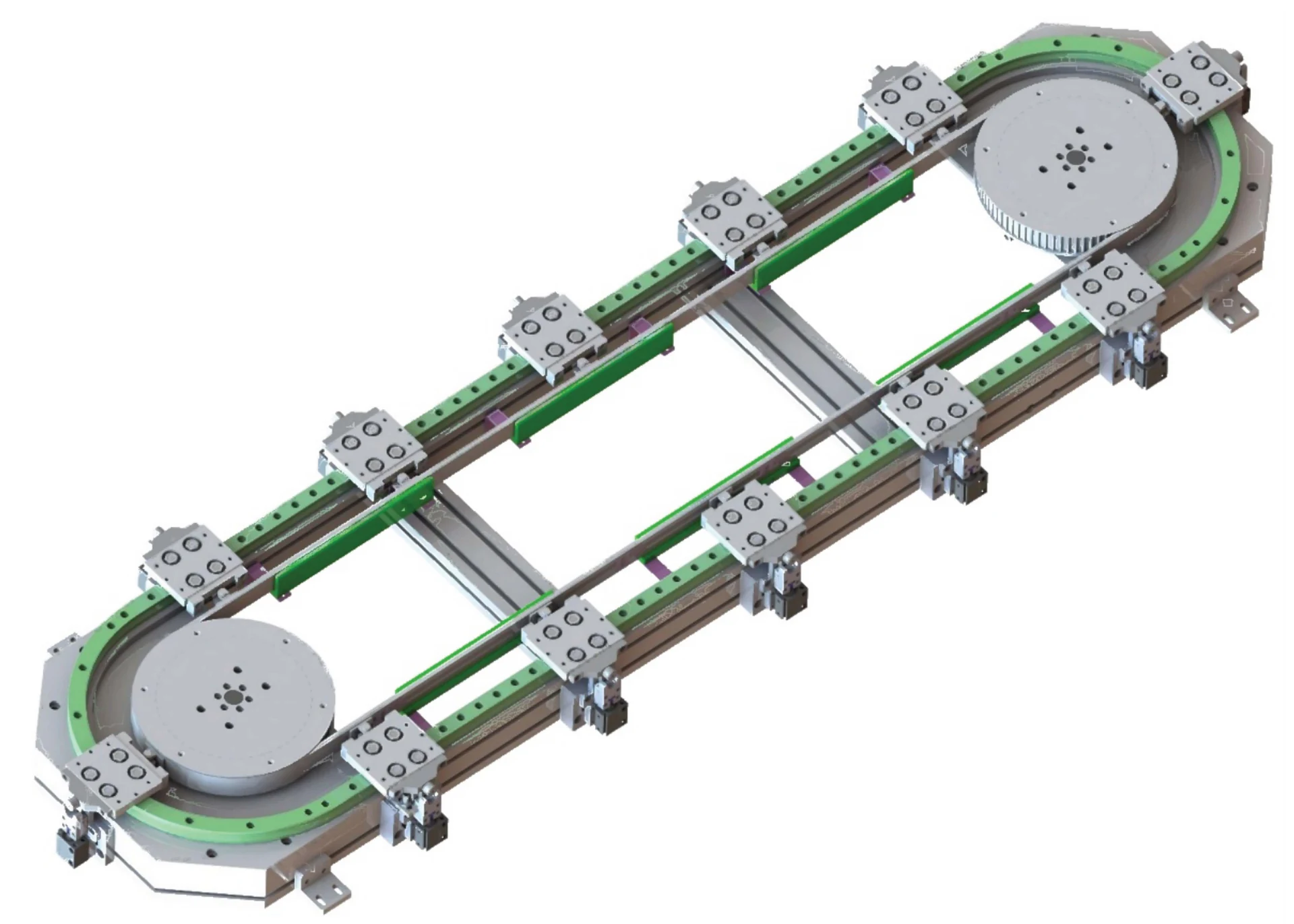

An oval track conveyor combines straight working sections with curved return ends, circulating fixture carriages between assembly or inspection stations. SANJ configures the layout around your process.
View technical details →
Catalogue imageRING & TRACK SYSTEMS

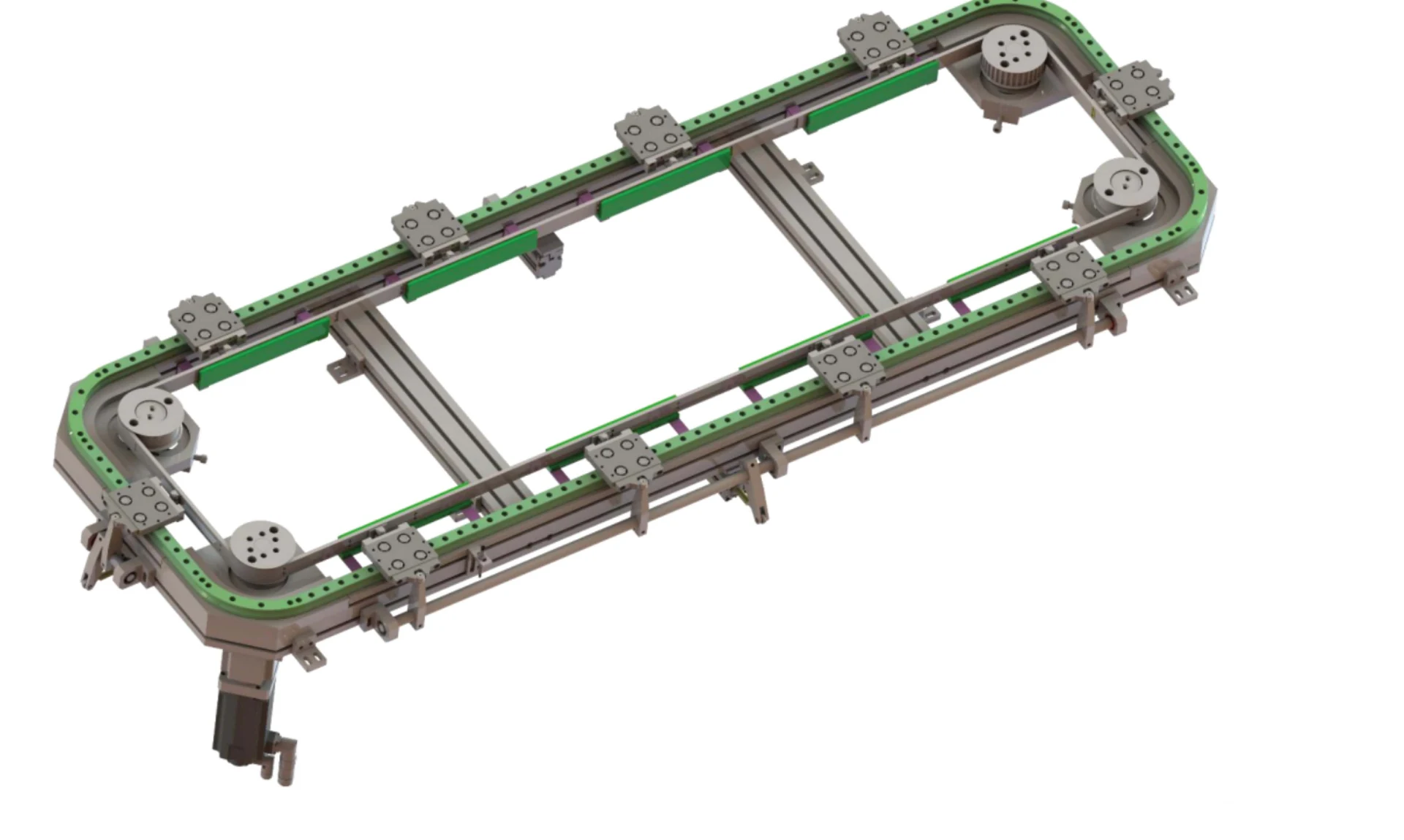

A rectangular track conveyor routes fixture carriages around a cell with work stations on multiple sides. Define straight lengths, corner clearances and process access before finalising the rail layout.
View technical details →
Catalogue imageRING & TRACK SYSTEMS
A vertical track conveyor places the circulation path upright to suit the equipment layout. Payload retention, orientation changes and access at both levels must be reviewed with the mechanical design.
View technical details →NON-STANDARD CONFIGURATIONS
Start with the station plan, not a catalogue number.
For OEM equipment builders, fixture clearance around a return curve and the locating mechanism at a work station shape the system. Share the layout, total moving load and required cycle so the interfaces can be reviewed together.
Explore custom manufacturing →
Product concept based on the supplied catalogueENGINEER WITH THE DETAILS IN VIEW
T25GR, T23-24 and GV families with source drawings, dimension tables and matching straight-rail configurations.
PEOPLE. PROCESS. PRECISION.

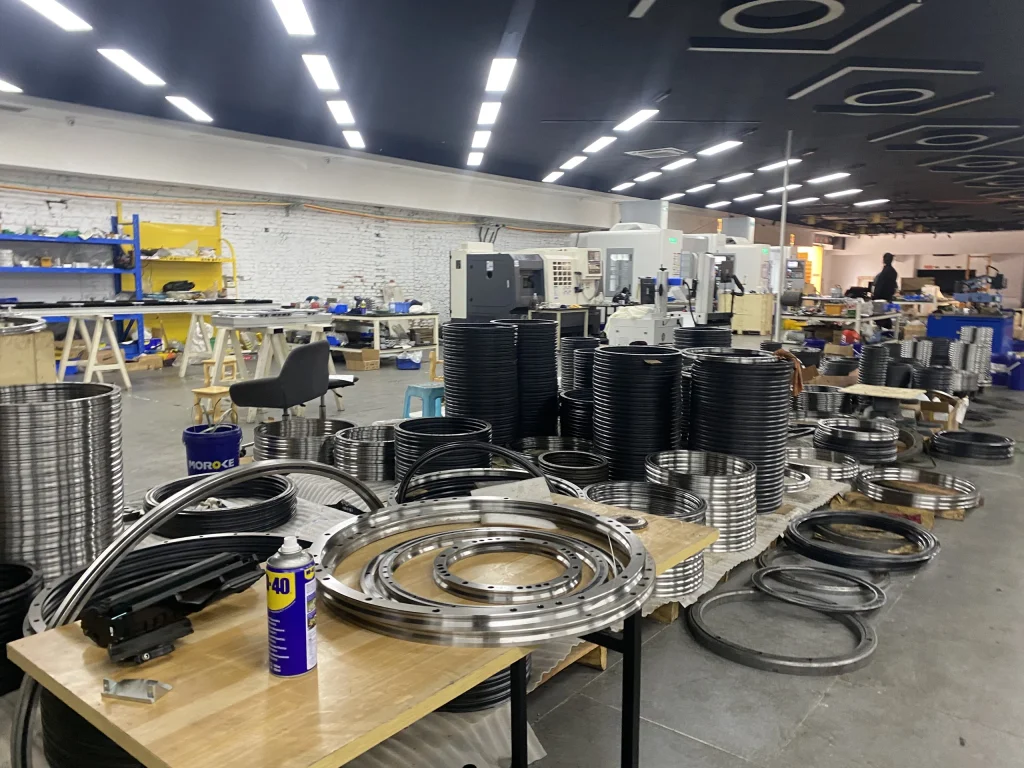

Explore real workshop photographs of circular rail components, carriage details and complete track assemblies. Then connect your project brief to an agreed drawing and acceptance requirements.
APPLICATION-LED SELECTION
NEWS & ENGINEERING INSIGHTS
SANJ ENGINEERING / 23 Oct 2026
A positioning figure is useful only when its mechanism, measuring point and test conditions are defined. Learn how to specify accuracy for a custom ring-track conveyor.
Read the guide →SANJ ENGINEERING / 23 Oct 2026
Compare the six SANJ catalogue rail families and 33 arc models. Learn what D, h, H, arc coverage and the straight-carriage dimensions do and do not tell you.
Read the guide →SANJ ENGINEERING / 23 Oct 2026
A useful custom ring-guide enquiry begins with the process: layout, total moving load, station forces, cycle, positioning and integration scope. Use this checklist before selecting a rail series.
Read the guide →FROM MOTION PATH TO PROJECT BRIEF
Share a layout, payload and operating brief. Build the enquiry around the details that matter.
